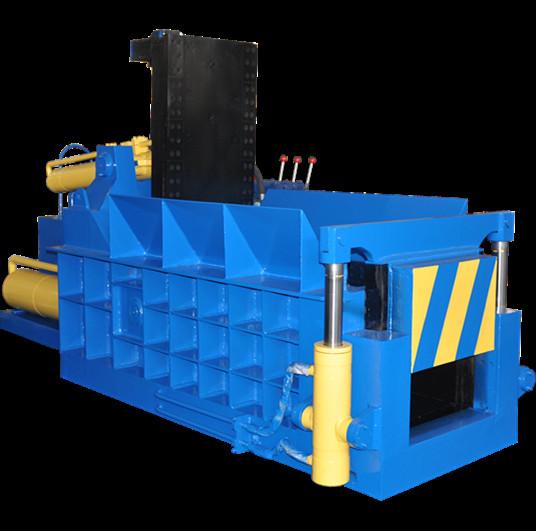

Fully Automatic Baler Y81 Series horizontal hydraulic scrap copper metal baler Metal Press Machine Metal Baling Machine

  • 1
  • 2
  • 3

Brand Name : HANLV

Model Number : Y81 SERIES

Certification : CE

Place of Origin : CN

MOQ : 1SET

Price : $3000-300000

Payment Terms : D/P, T/T, L/C, D/A, Western Union

Supply Ability : 300sets per year

Delivery Time : 30 work days

Packaging Details : wooden crate / sea packing

Contact Now

  • Product Name:

Fully Automatic Baler Y81 Series horizontal hydraulic scrap copper metal baler Metal Press Machine Metal Baling Machine

Model Main cylinder force (ton) Feed box size (mm) Bale size (mm) Bale weight (kg) Motor (kw)
Y81-1250 125 1200*700*600 300*300 50-70 15
Y81-1600A 160 1600*1000*700 350*350 100-180 22
Y81-1600B 160 1600*1200*800 400*400 100-200 30
Y81-2000A 200 1600*1200*800 400*400 120-220 37
Y81-2000B 200 1800*1400*800 450*450 180-350 44
Y81-2500A 250 1800*1200*800 400*400 200-400 44
Y81-2500B 250 2000*1400*900 500*500 200-450 44
Y81-2500C 250 2000*1750*1200 500*500 200-450 60
Y81-3150 315 2600*2000*1200 600*600 400-700 90
Y81-4000 400 3000*2000*1200 600*600 500-800 90

2.Applications:

Y81 automatic metal scrap baler is capable of extruding various metal leftover, steel paring, waste copper, aluminum, stainless steel and scrapped car into regular charging as square colum, cylinder etc. different shapes.

By this way, the costs of transportation and refining can be reduced. It also make the transportation easier and faster.

3.Features:

1) Hydraulic drive, manual or PLC control.

2) Bale-discharging:"turn-out", "push-out", "forward-out" .

3) The whole set equipment can be moved easily ;Diesel engine can be the power.

4) Customized feed box and bale size for different scrap material.

5) We are factory with strict quality control team.

Packing&Shipping

a. All worn parts are packaged in plastic film and wooden cases.
b. The wire rope is used to fix the machine.
c. FCL: Shipped in standard export containerFully Automatic Baler Y81 Series horizontal hydraulic scrap copper metal baler Metal Press Machine Metal Baling MachineFully Automatic Baler Y81 Series horizontal hydraulic scrap copper metal baler Metal Press Machine Metal Baling MachineFully Automatic Baler Y81 Series horizontal hydraulic scrap copper metal baler Metal Press Machine Metal Baling MachineFully Automatic Baler Y81 Series horizontal hydraulic scrap copper metal baler Metal Press Machine Metal Baling MachineFully Automatic Baler Y81 Series horizontal hydraulic scrap copper metal baler Metal Press Machine Metal Baling MachineFully Automatic Baler Y81 Series horizontal hydraulic scrap copper metal baler Metal Press Machine Metal Baling Machine
